Assa Abloy M5000

Description

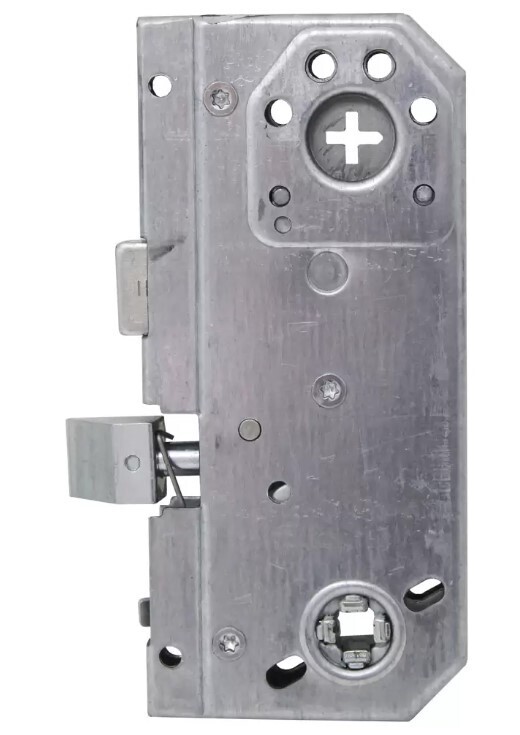

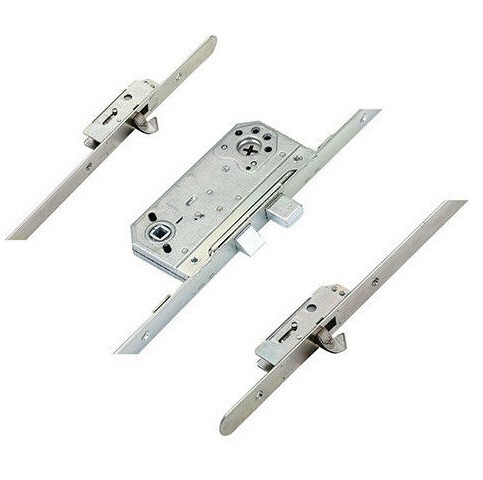

Operation and features When the door is unlocked, hook/wedge bolts and dead bolt are retracted. The latch bolt is in operation and keeps the door in place and closed. The handle is horizontal and is pushed down to open the door. The door can be closed without turning the handle. Locking is done by turning the handle upwards. The handle goes back to a horizontal position. The locking is then done with a key or turn catch. The dead bolt goes into operation and is locked together with the hook/wedge bolts Features ·Scandinavian Profile Lock Case ·Latch & Deadbolt ·25mm Faceplate ·Face plate 25 x 2 mm, round plate edges ·M5000 – Key turn 360° ·Side bolt Hook bolt, 2 pcs., bolt stroke 25 mm. Latch bolt and dead bolt. Latch reversal: Undo the 2 screws on side of lockcase nearest to the faceplate, remove the gearbox from the strip, twist the latch to reverse and then reconnect the case to the faceplate.
